69721

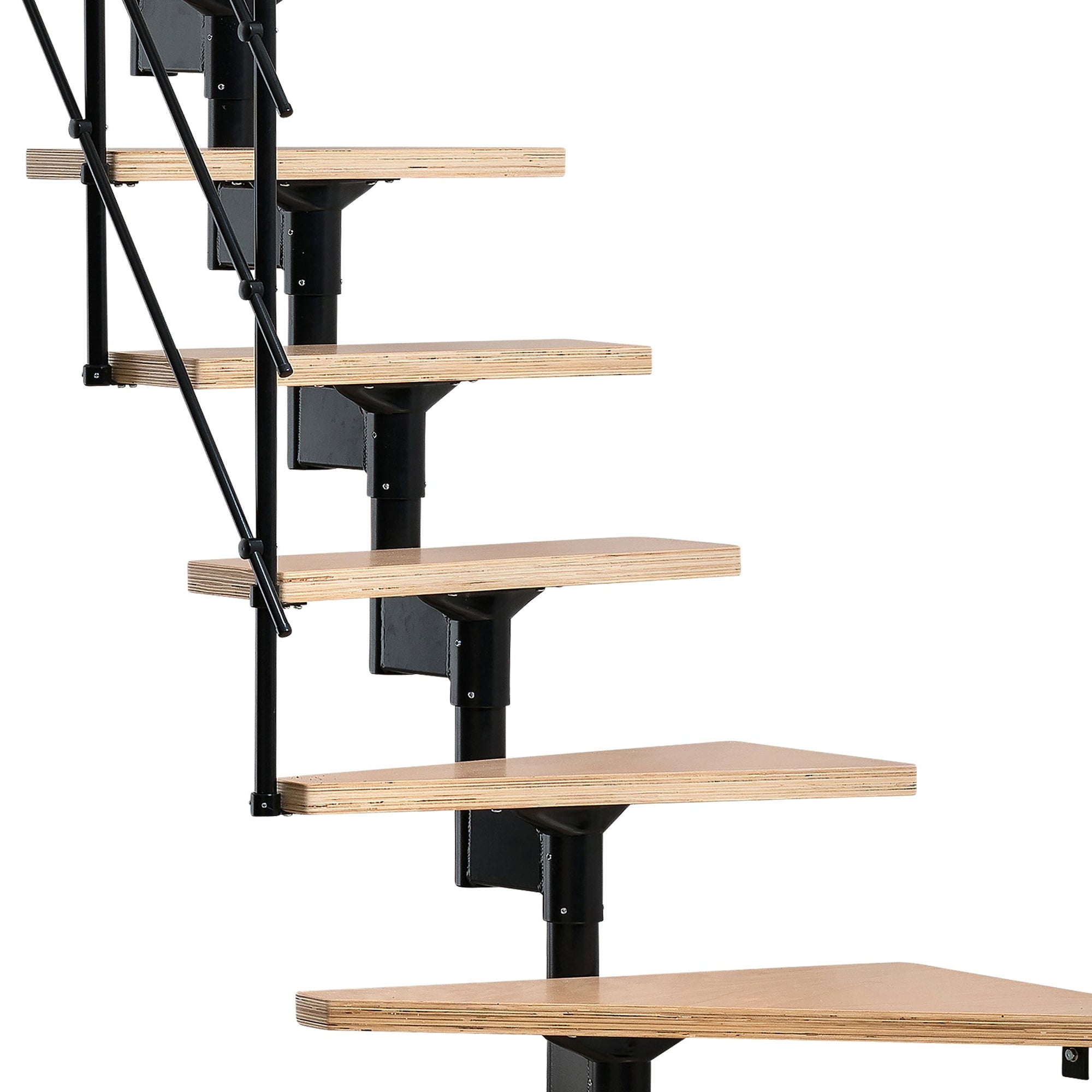

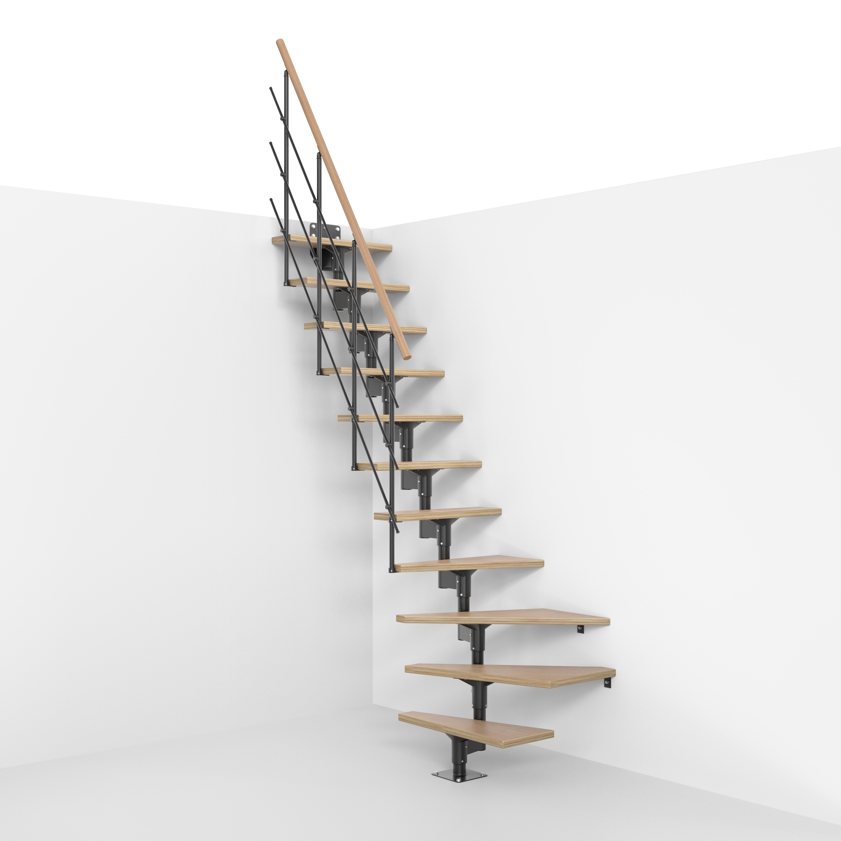

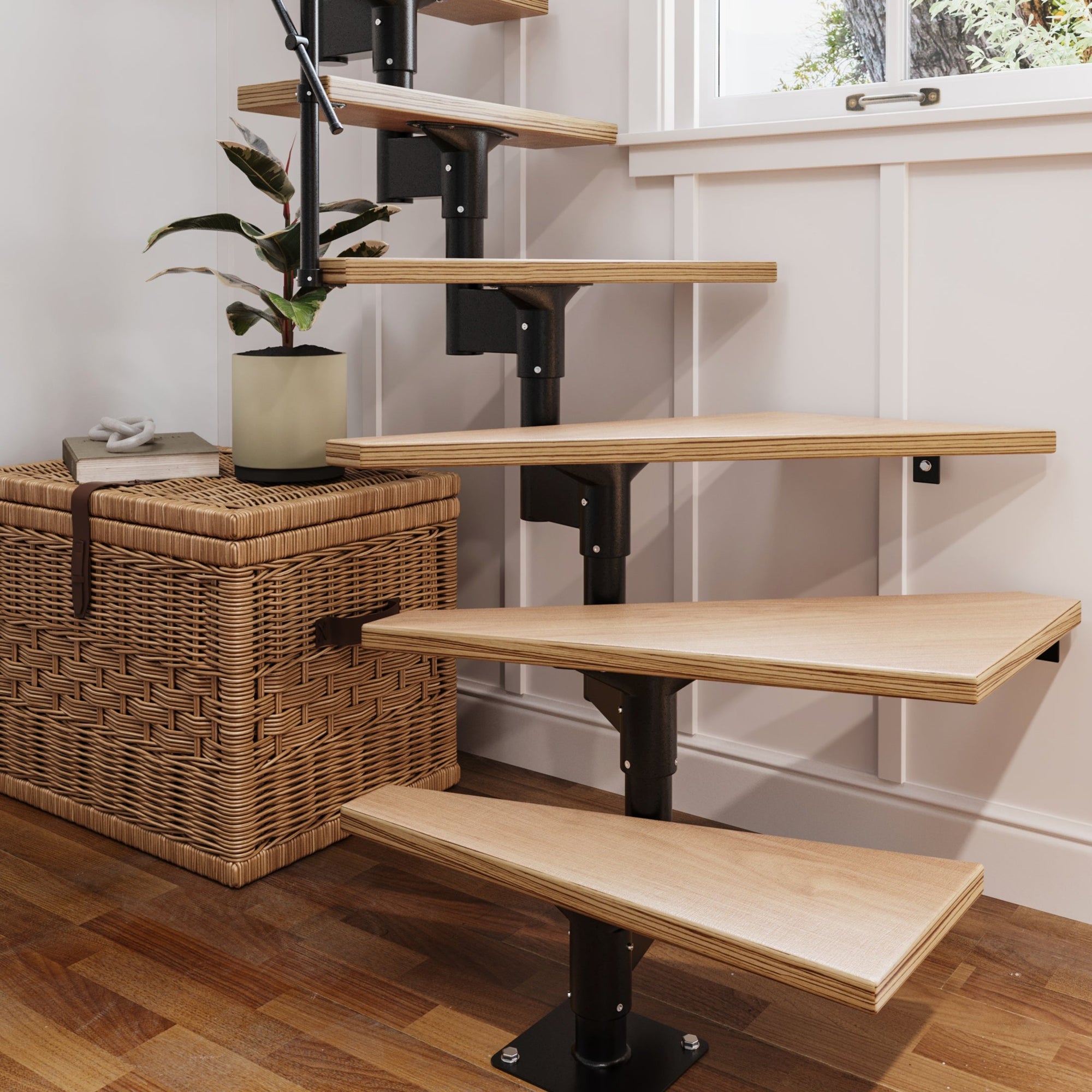

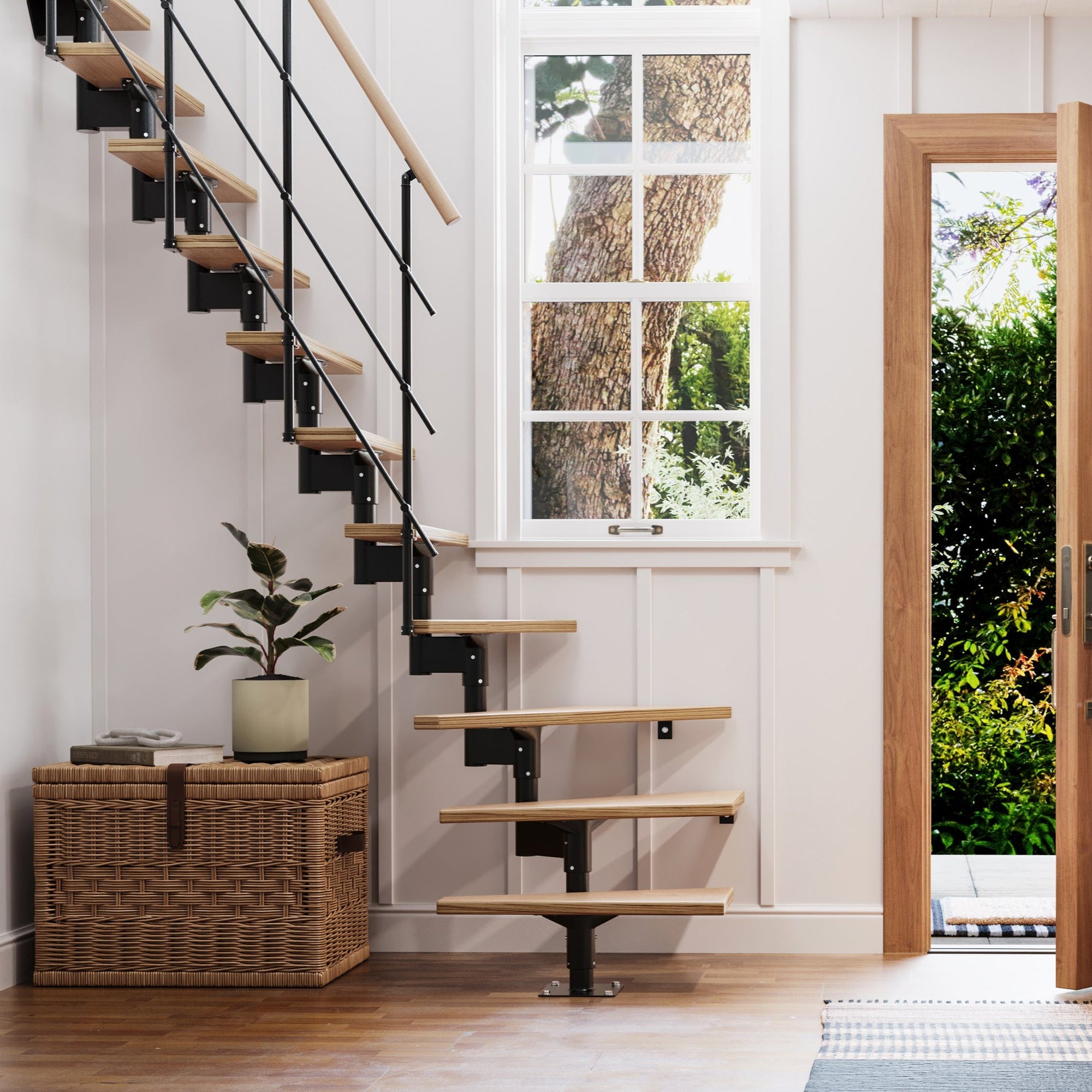

Dolle Lyon Modular Staircase Kit - Black

The Dolle Lyon modular staircase kit offers a quarter turn layout for those in need of a space saving staircase solution. Designed for interior use only the Lyon modular staircase kit ships with 11 lacquered multiplex beechwood treads that can be installed in several different corner layouts. This sleek and modern staircase can achieve a floor to floor height of 85-1/16 to 103-15/16 inches and is perfect for any loft, office, or bedroom. The Lyon kit ships with one side of railing comprised of beech wood handrails, vertical powder coated steel balusters, and horizontal PVC infill. All materials required for assembly are included.

  • Adjustable height from 85-1/16 to 103-15/16 in
  • 11 lacquered multiplex beech wood treads included
  • Interior use only
  • Black powder coated steel risers

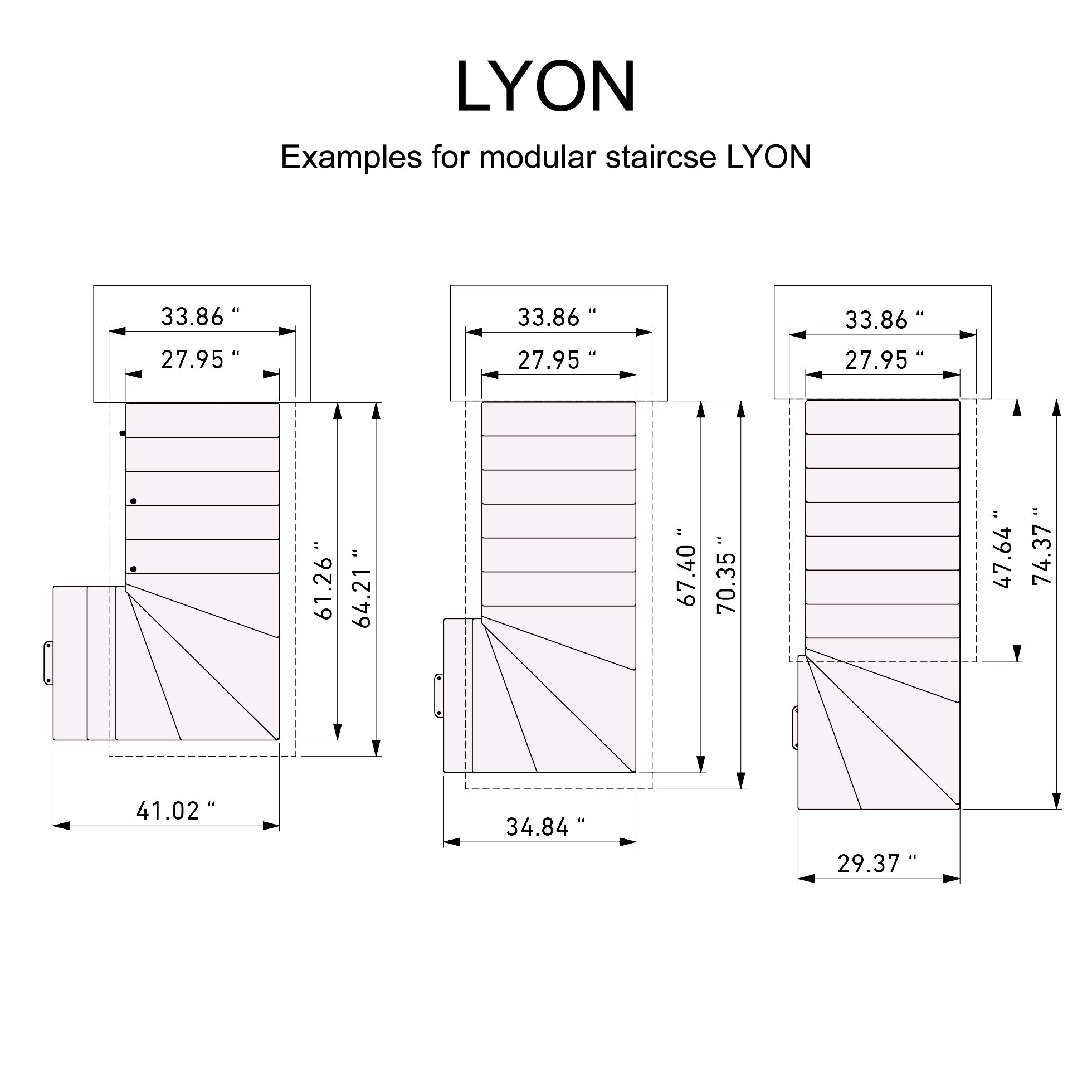

  • Multiple corner layout options available
  • Lacquered beech wood handrail 1 1/2" diameter included
  • Includes: 11 multiplex treads, beech wood handrail, PVC infills, steel balusters, anchors, and all assembly hardware
  • Can be installed in 1-2 days with common tools with detailed assembly instructions and support videos available online
  • Modular stairs are non-code compliant items consult your local building inspector for any questions and specifics regarding compliance
Tread Material Multiplex beech wood with scratch resistant varnish
Structure Material
Steel with painted powder coating
In-Fill Material
PVC
Handrail Material Lacquered beech wood
Staircase Height 85 1/16” – 103 15/16”
# of Treads 11
Tread Rise 7 5/16” – 8 7/8”
Ceiling Opening Required 51 3/16”
Weight Capacity
490 lbs



    Important: consult your local building inspector for any questions and specifics regarding compliance with the local building codes prior to purchase


    Have questions about the installation process?  Refer to our Lyon Installation Guide for more information.
